P-DUKE introduces MAD150-series Medical 150W AC/DC converters
Meeting the stringent requirements of healthcare applications requires reliable and efficient power solutions. The MAD150 series from P-DUKE is a medical AC/DC power supply that ensures your devices operate safely and reliably, even in the most critical environments.

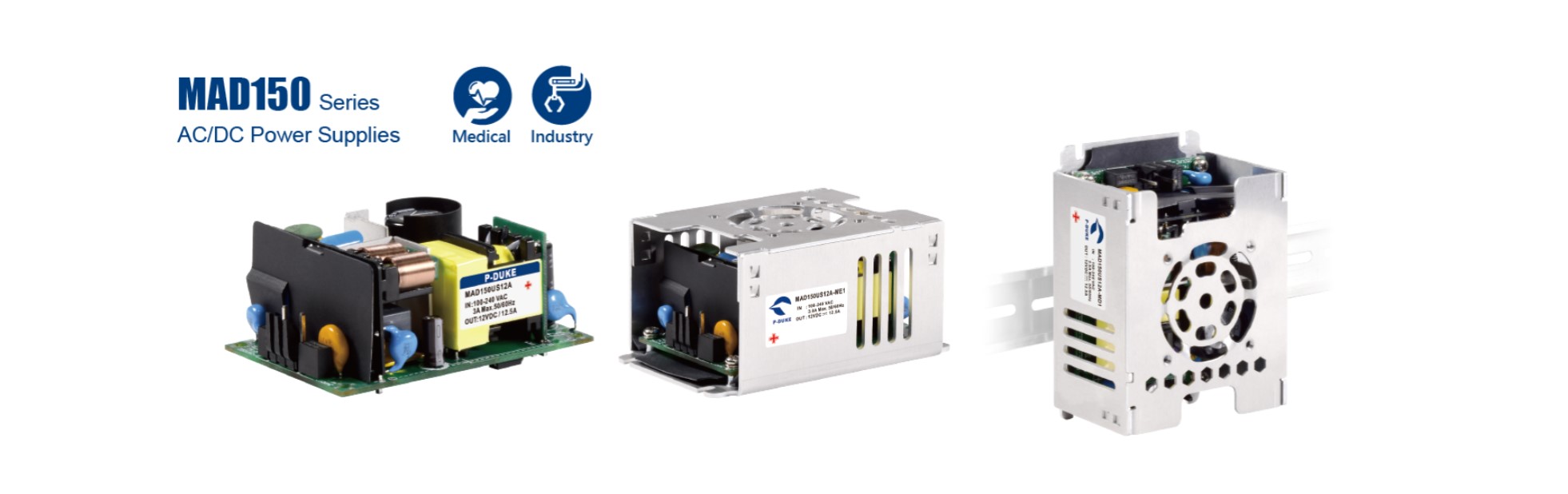

With a continuous output power of up to 150W and a peak power of 200W for 5 seconds, the MAD150 delivers exceptional performance in a compact 3"x2" package. Available in open frame, enclosed, and DIN-rail configurations, it offers flexible connection options such as JST connectors, Molex connectors, and screw terminals. With an efficiency of 94%, it minimizes heat generation, supports a wide operating temperature range from -40°C to +85°C, and operates at altitudes up to 5000m. Designed for medical applications, the MAD150 has a patient leakage current of <100μA, 2xMOPP isolation, and 4000 Vac isolation, ensuring safety for type BF applied parts.
The MAD150 series provides a reliable solution for performance, safety, and versatility in demanding healthcare environments. Discover how the MAD150 can enhance your medical designs today.
Features
- Up to 94% conversion efficiency
- Up to 200W peak load for 5 seconds
- 4000Vac reinforced 2xMOPP isolation
- Low leakage current < 100μA
- Complies with EN55032 radiated & conducted EMI Class B
- Medical certification IEC/EN/ANSI/AAMI 60601-1
- Compact 3" x 2" package
- Operating altitude up to 5000 m
- Operating temperature range -40°C to +85°C
- 5-year product warranty
Applications Portable medical devices, diagnostic equipment, monitoring equipment, hospital beds, and medical cart
