New Smart Display series from Winstar - Displays

Revolutionize your UI design with WINSTAR's new Smart Display series

The WINSTAR Smart Display is a high-quality solution that allows engineers and developers to easily create various UI widgets. This TFT display integrates advanced technology for seamless communication and visual output.

Key features include:

• Real-time simulation: Test designs directly with the Smart Display GUI Builder, without programming.
• Convenient design: Drag-and-drop, zero-code UI creation—perfect for beginners using UART TFT solutions.
• Rich widgets: Customize widgets to meet various application needs for an enhanced UART display experience.
• STM32F MCU & ST Tools support: Designed with STM32F MCU, supported by ST's development tools like TouchGFX and STM32CubeIDE.
• STMicroelectronics IC: Built with an STMicroelectronics IC, with extensive documentation and technical support.
• Various sizes: Available in multiple sizes to meet different requirements.
• Application scenarios: Ideal for short-range industrial applications such as coffee machines, vending machines, and digital audio mixers.

The WINSTAR UART Smart Display eliminates the need to separate design from functionality, saving time. Real-time simulation and a user-friendly design interface make it accessible to users without a programming background. Easy to start and accelerates development for programmers with the built-in STM32 MCU on the Smart UART module. WINSTAR's UART Smart Display is the ideal choice for modern display solutions. Whether you are an experienced developer or a beginner designer, this display makes your work simpler and more efficient.

Available models:

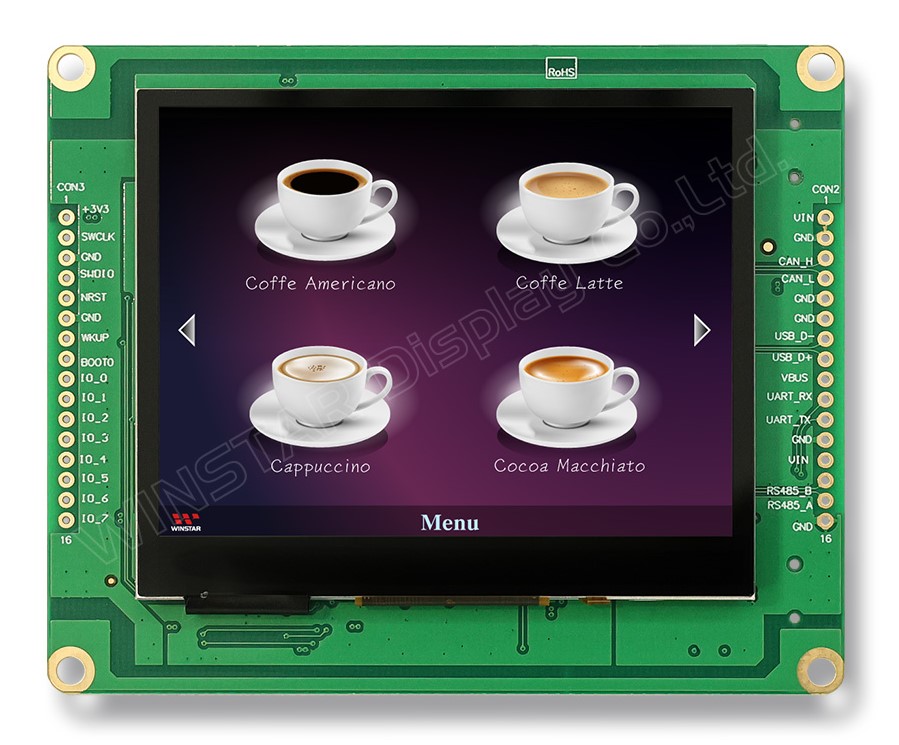

Model No.: WL0F00035000XGFAASA00

• Screen diagonal: 3.5 inches
• Resolution: 320×240 pixels
• Module dimensions: 100 × 82 × 13.2 mm
• Active area: 70.08 × 52.56 mm
• Viewing angle: 80/80/80/80 (IPS)
• Aspect ratio: 4:3
• Operating voltage: 5 ~ 28 Vdc
• Communication interface: UART
• Protocol: Proprietary UART + GPIO
• MCU: STM32F750
• Flash memory: 16 MB
• Touch panel: Capacitive Touch Panel
• Surface: Glossy
• Brightness: 400 cd/m²
• Operating temperature: -30~+80℃

Model No.: WL0F00043000WGFAASA00

• Screen diagonal: 4.3 inches
• Resolution: 480×272 pixels
• Module dimensions: 119.3 × 67.2 × 13 mm
• Active area: 95.04 × 53.856 mm
• Viewing angle: 80/80/80/80 (IPS)
• Aspect ratio: 16:9
• Operating voltage: 5 ~ 28 Vdc
• Communication interface: UART
• Protocol: Proprietary UART + GPIO
• MCU: STM32F750
• Flash memory: 16 MB
• Touch panel: Capacitive Touch Panel
• Surface: Glossy
• Brightness: 400 cd/m²
• Operating temperature: -30~+80℃

Model No.: WL0F00050000FGFAASA00

• Screen diagonal: 5 inches
• Resolution: 800×480 pixels
• Module dimensions: 132.7 × 75.8 × 12.5 mm
• Active area: 108 × 64.8 mm
• Viewing angle: 80/80/80/80 (IPS)
• Aspect ratio: 15:9
• Operating voltage: 5 ~ 28 Vdc
• Communication interface: UART
• Protocol: Proprietary UART + GPIO
• MCU: STM32F750
• Flash memory: 16 MB
• Touch panel: Capacitive Touch Panel
• Surface: Glossy
• Brightness: 400 cd/m²
• Operating temperature: -30~+80℃

Model No.: WL0F0007000A8GFAASA00

• Screen diagonal: 7 inches
• Resolution: 1024×600 pixels
• Module dimensions: 184.1 × 103.8 × 22 mm
• Active area: 154.2144 × 85.92 mm
• Viewing angle: 85/85/85/85 (IPS)
• Aspect ratio: 16:9
• Operating voltage: 8 ~ 35 Vdc
• Communication interface: UART
• Protocol: Proprietary UART + GPIO
• MCU: STM32F746
• Flash memory: 16 MB
• Touch panel: Capacitive Touch Panel
• Surface: Glossy
• Brightness: 400 cd/m²
• Operating temperature: -20~+70℃

Model No.: WL0F00101000JGFAASA00

• Screen diagonal: 10.1 inches
• Resolution: 1024×600 pixels
• Module dimensions: 235 × 143 × 23.2 mm
• Active area: 222.72 × 125.28 mm
• Viewing angle: 85/85/85/85 (IPS)
• Aspect ratio: 16:9
• Operating voltage: 8 ~ 28 Vdc
• Communication interface: UART
• Protocol: Proprietary UART + GPIO
• MCU: STM32F746
• Flash memory: 16 MB
• Touch panel: Capacitive Touch Panel
• Surface: Glossy
• Brightness: 400 cd/m²
• Operating temperature: -20~+70℃

Smart Display UART protocol

The SmartDisplay UART protocol is a proprietary communication protocol developed by WINSTAR, designed to enable customers to easily operate their HMI (Human-Machine Interface) screens via the UART interface. This innovative protocol combines WINSTAR's user-friendly GUI Builder, providing customers with an intuitive and powerful tool to customize and quickly build widgets that meet their needs. Through the GUI Builder, customers can easily design a variety of HMI objects for interaction, ranging from simple buttons and text to complex meters and keyboards, meeting various application scenarios. This not only saves customers time and costs but also makes UI design more flexible.

Smart Display GUI Builder

The SmartDisplay GUI Builder offers you an intuitive and user-friendly interface to easily create your own HMI projects. Simply drag various widgets onto the page using the GUI Builder. Display them easily and communicate with them on SmartDisplay devices.

UART protocol

Customers can design UI by dragging and dropping widgets using the GUI Builder. By following the WYSIWYG (What You See Is What You Get) principle, UI design becomes intuitive and efficient. Additionally, customers can preview the design result via the simulator to directly view the UI presentation, providing an early understanding of the final result and saving time and effort. Ultimately, customers can easily operate the device through WINSTAR's custom UART protocol. This end-to-end design process allows seamless integration of design and operation for customers. The application of the SmartDisplay UART protocol brings more operational capabilities and convenience to customers, expanding the scope of possibilities.
