New P-DUKE HAE300W series DC/DC converters - Power

300W power in a compact 'half-brick' form factor specifically for industrial and railway applications.

Published: 01-12-2024

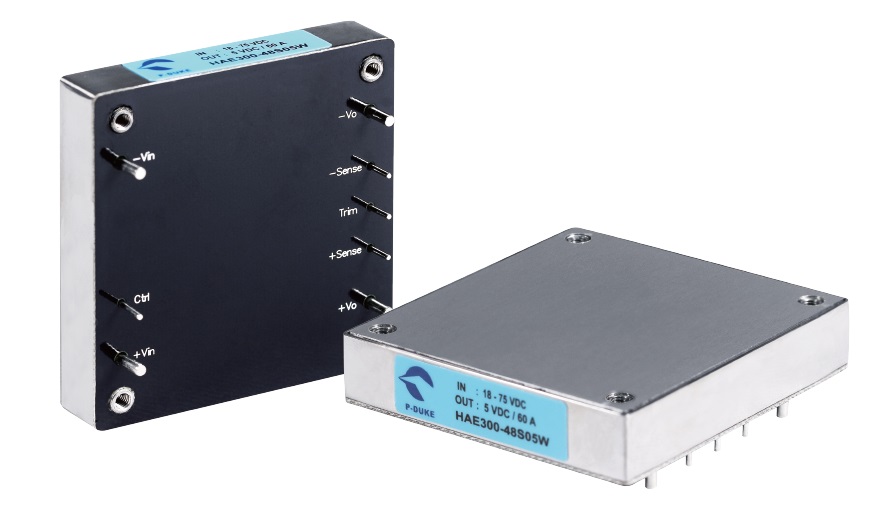

Introduction of P-DUKE's HAE300W Series DC/DC Converters

The P-DUKE HAE300W series delivers up to 300W power in a compact half-brick design, specifically for industrial and railway applications. This series seamlessly adapts to various energy systems with a wide 4:1 input voltage range (9-36, 18-75, 40-160 Vdc) and adjustable output options (5-54 Vdc).

Designed for safety and reliability, it includes extensive protections such as overcurrent, output overvoltage, and short-circuit protection, along with remote control and sensing capabilities. The HAE300W series meets IEC/EN/UL62368-1, EN 50155, and EN 45545 standards, ensuring suitability in critical environments. With robust performance in extreme conditions—vibration resistance (MIL-STD 810F, EN 61373) and operation up to 5000m altitude—the HAE300W series is the perfect solution for powering electronic systems in demanding railway and industrial environments.

Features:

300W Output Power
4:1 Wide Input Range: 9-36, 18-75, and 40-160Vdc
Output Voltage: 5, 12, 15, 24, 28, 48, and 54Vdc
No Minimum Load Required
3000Vac Reinforced Insulation for 110Vin
2250Vdc Basic Insulation for 24 and 48Vin
5000m Operating Altitude
EN 50155, IEC/UL/EN 62368-1 Safety Approval (*pending)
3-Year Product Warranty
