NSP Series: Compact, Efficient, and Cost-Conscious
The MEAN WELL NSP series is the ideal successor to the RSP line, setting a new benchmark in AC-DC power supplies: smaller, more efficient, and more affordable than ever. Discover how this next-generation power supply saves space, boosts performance, and reduces costs.
Ask a question Order your sample Datasheet downloadCompact Design, Maximum Performance
The NSP series is more than 30% smaller than the previous RSP models, providing greater flexibility in enclosure design and installation. The compact casing leaves more room for other components, reducing housing costs and enabling a more efficient system layout.
Despite its smaller size, the NSP delivers outstanding performance. With efficiency levels from 90% up to 94.5%, it ranks among the best in its class. Less energy loss means less heat generation and a longer lifespan, both for the power supply and for surrounding electronics.
The series includes fanless models (up to 200 W) for completely silent operation, as well as a 320 W version with a quiet fan (< 40 dB) for applications requiring higher power output.
Reliable in Every Condition
Designed for dependable operation in demanding environments, the NSP series performs flawlessly from –40 °C to +85 °C (full load up to +60 °C) and up to 5000 m altitude. It’s the ideal choice for industrial, automation, and energy applications.
Thanks to its OVC III classification, an additional isolation transformer is often unnecessary, simplifying system design and reducing costs. All models are also equipped with conformal coating for protection against moisture, dust, and condensation, ensuring long-term reliability in harsh environments.
Ready to make the switch?
Request a sample or consult our power experts to see how the NSP series can improve your design!
Order your sample
Contact our experts
Global Certification and Cost Advantage

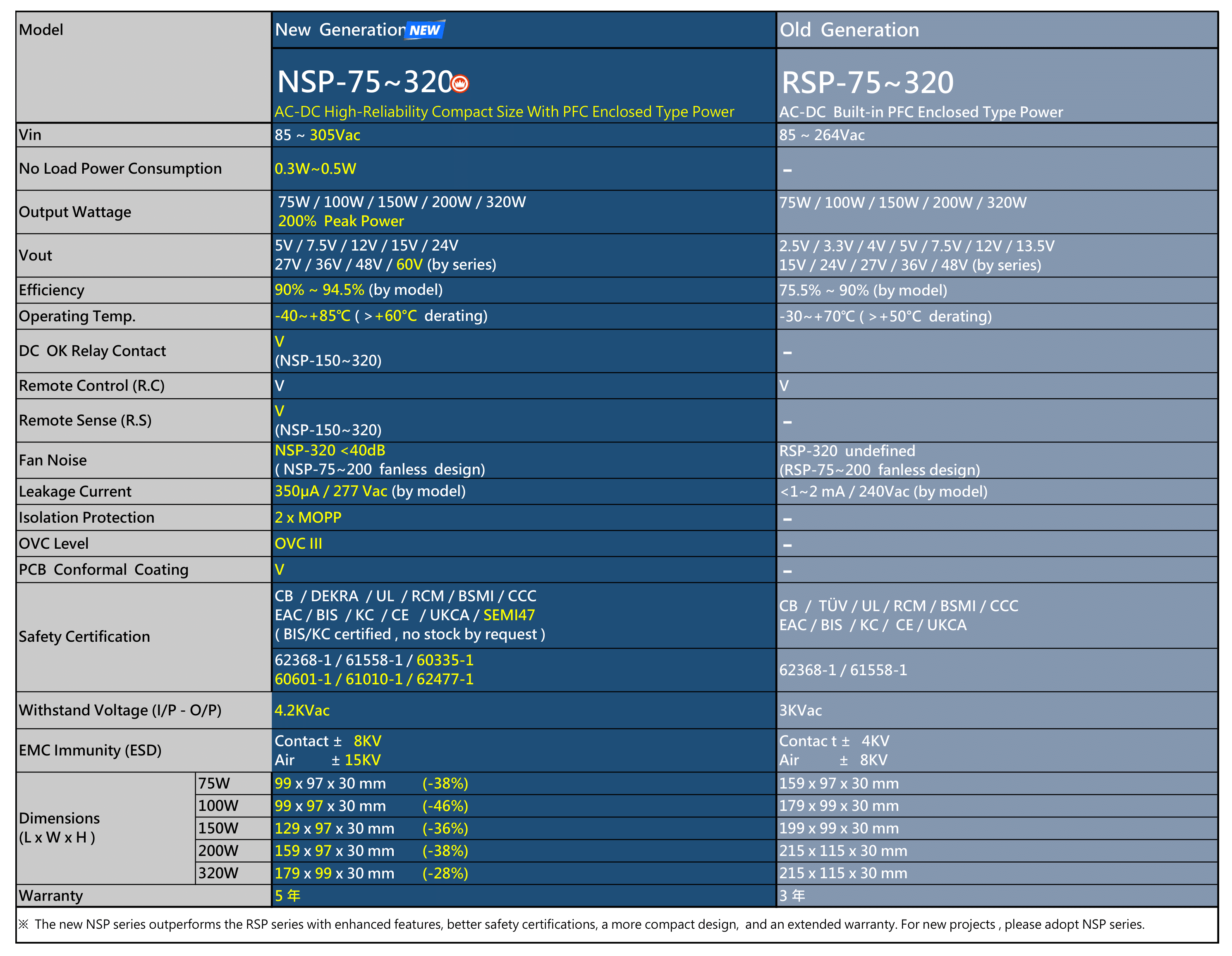

The NSP series complies with a wide range of international standards, including CB, DEKRA, UL, RCM, BSMI, CCC, EAC, BIS, KC, CE, UKCA, and SEMI47. It is certified to IEC/EN/UL 62368-1, 61558-1, 60335-1, 60601-1, 61010-1, and 62477-1, making it suitable for worldwide use across multiple industries.
With an optimized design and streamlined production process, the NSP series offers exceptional price-performance value. The result: lower system costs, reduced energy consumption, and extended service life, all backed by a 5-year warranty.
Any questions?
Feel free to get in touch!
Our power experts are happy to help with any questions about the MEAN WELL NSP series or other power supply solutions.
