Mean Well UHP-200-48
Article number:
UHP-200-48
Article GTIN:
4711287432427
Downloads

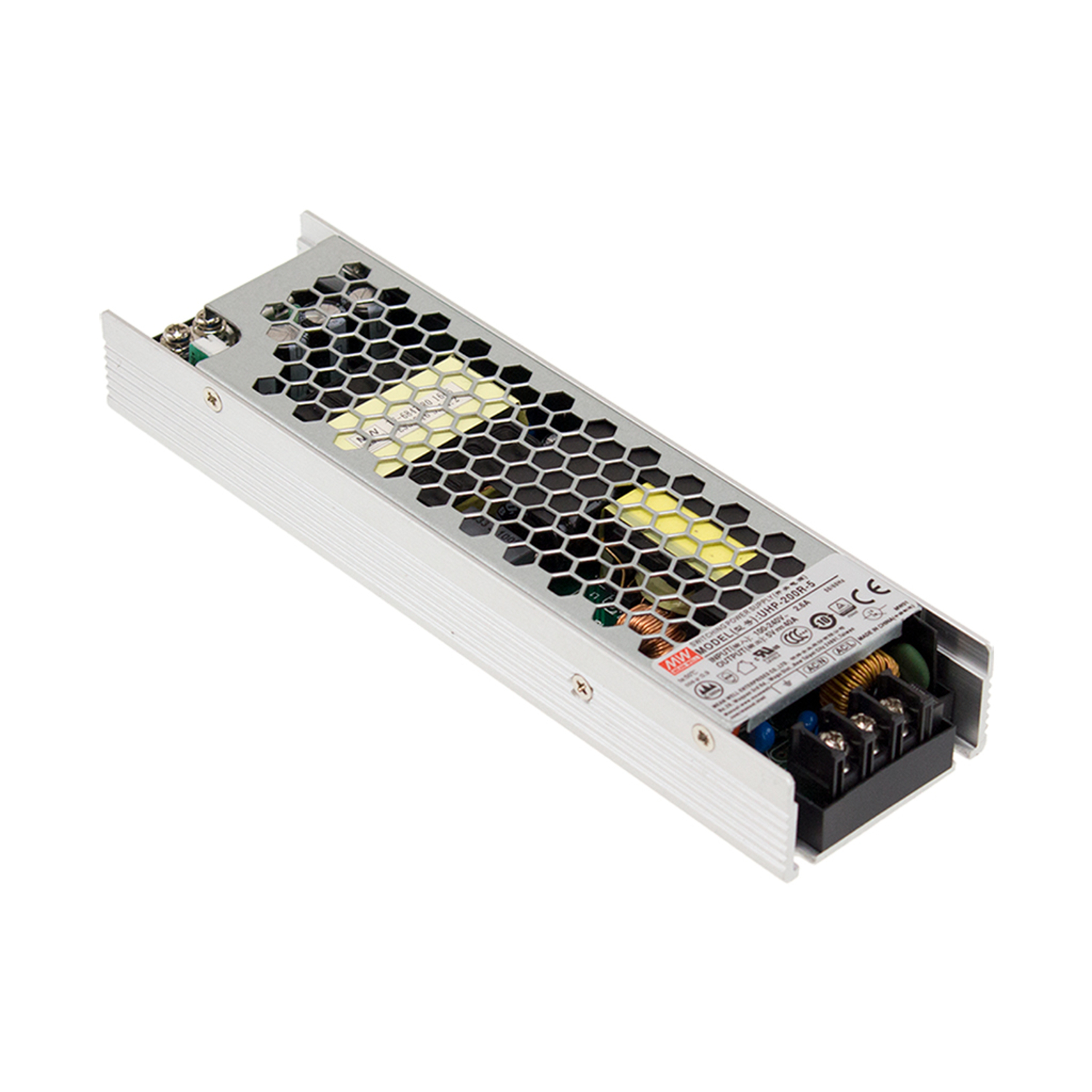

AC-DC Slim Single output enclosed power supply with PFC; Output 48VDC at 4.2A
Properties
- Series: UHP-200(R)
- Brand: Mean Well
- Dimensions LxWxH (mm): 267x70x38 mm
- Warranty: 12 Months Bring-In
- Gross weight: 470
- Type: AC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 48
- Max. output voltage (V): 48
- Number of output voltages: 1
- Max output power (W): 200
- Input voltage (V): 90 - 264
- Min. input voltage: 90
- Max. input voltage (V): 264
- Max. output current (A): 4.2
- Number of output currents: 1
- IP rating: No IP assigned
- LED driver: No
- Dimming technologies: No Dimming
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 5.14
