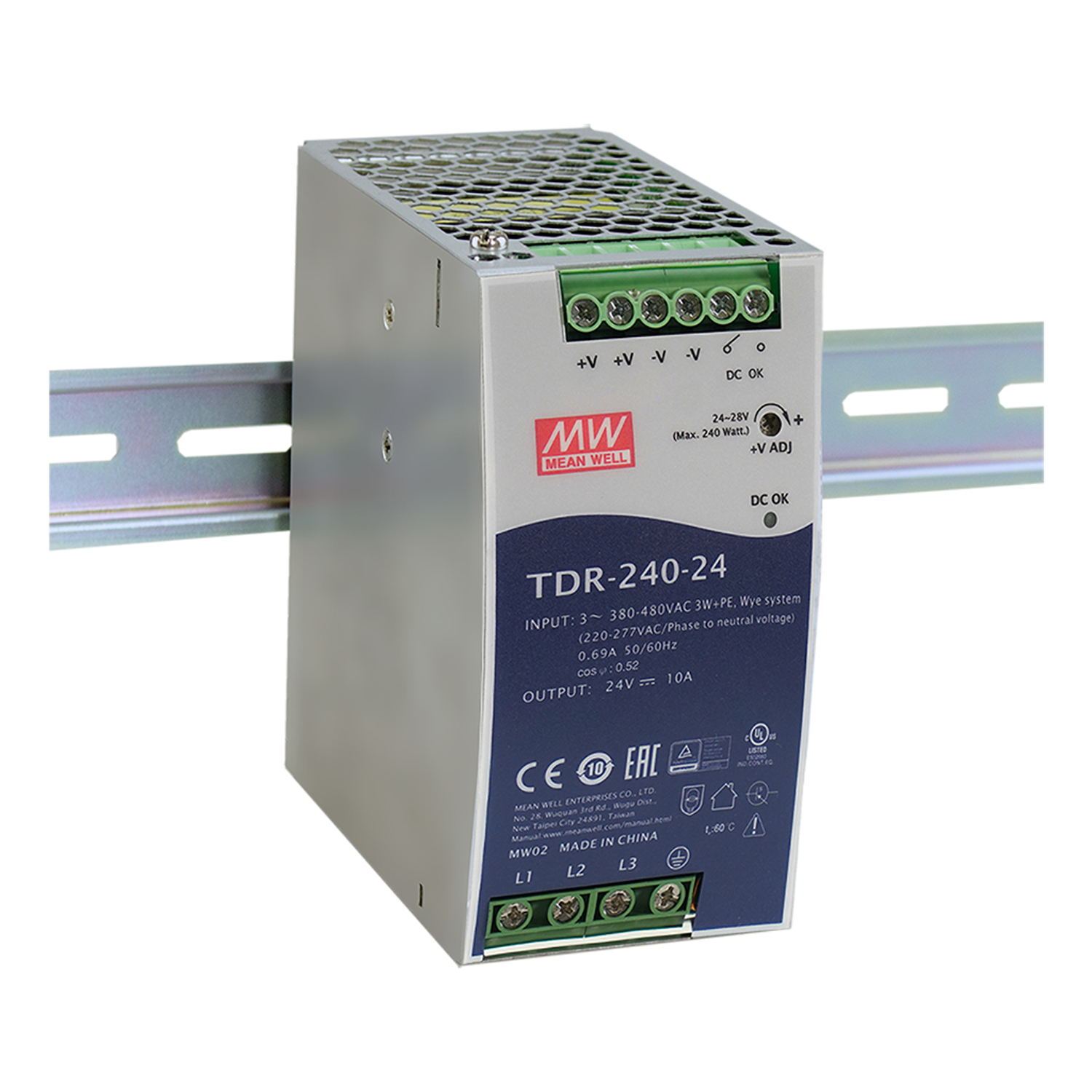

Mean Well TDR-240-24
Article number:
TDR-240-24
Article GTIN:
4711287422466
Downloads
AC-DC Industrial 3-phase DIN rail power supply with PFC and Constant Current; Output 24VDc at 10A; DC OK
Properties
- Series: TDR-240
- Brand: Mean Well
- Dimensions LxWxH (mm): 160x103x156 mm
- Warranty: 36 Months Bring-In
- Gross weight: 1000
- Type: AC-DC
- Form factor: DIN rail
- Mounting method: DIN-rail mount
- Min. output voltages (V): 24
- Max. output voltage (V): 24
- Number of output voltages: 1
- Max output power (W): 240
- Input voltage (V): 340 - 550
- Min. input voltage: 340
- Max. input voltage (V): 550
- Max. output current (A): 10
- Number of output currents: 1
- IP rating: No IP assigned
- LED driver: No
- Dimming technologies: No Dimming
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 13.94
