Mean Well SDR-480-24
Article number:
SDR-480-24
Article GTIN:
4711287422404
Downloads

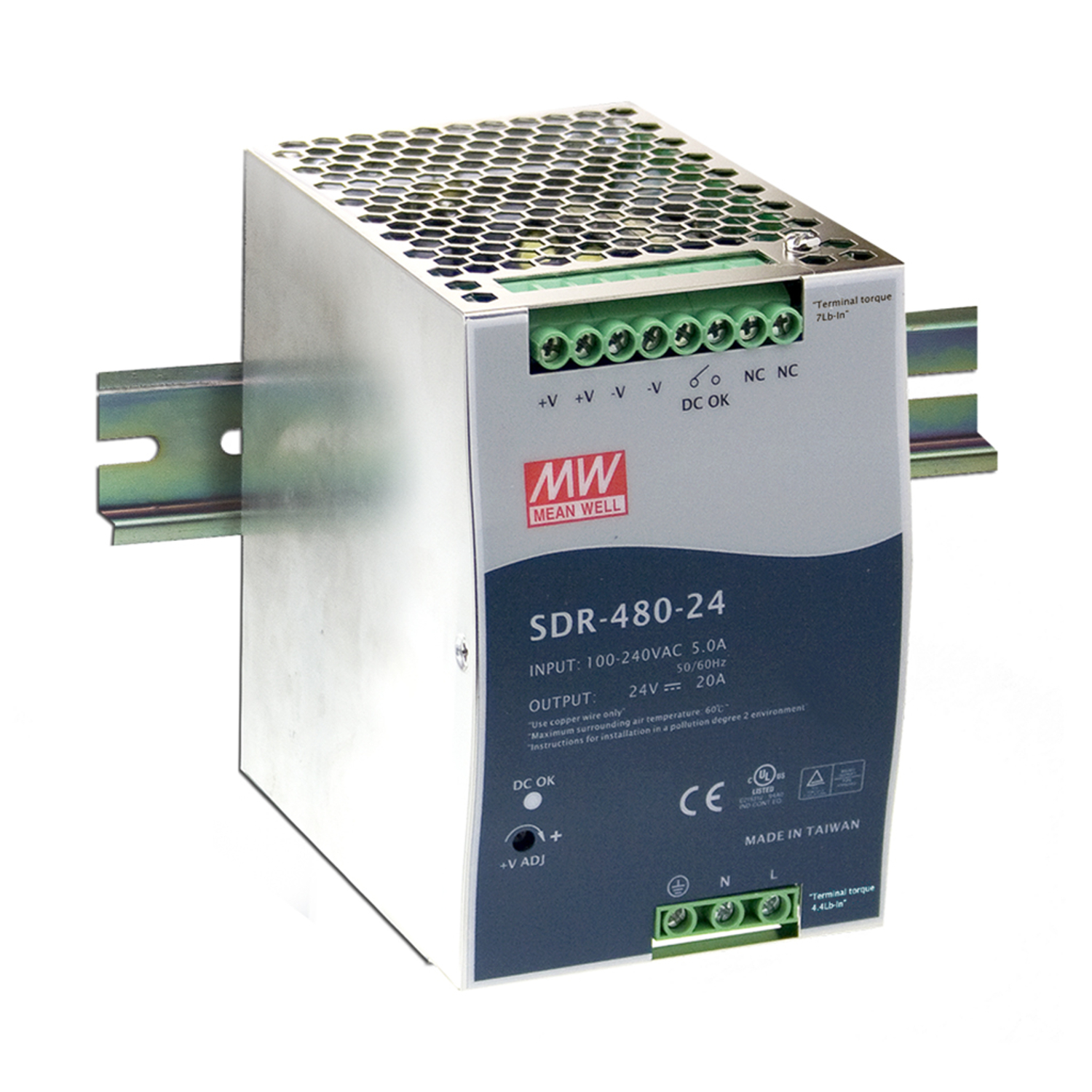

AC-DC Industrial DIN rail power supply; Output 24Vdc at 20A; Metal casing; Ultra slim width 85.5mm
Properties
- Series: SDR-480
- Brand: Mean Well
- Dimensions LxWxH (mm): 174x127x150 mm
- Warranty: 36 Months Bring-In
- Gross weight: 1690
- Type: AC-DC
- Form factor: DIN rail
- Mounting method: DIN-rail mount
- Min. output voltages (V): 24
- Max. output voltage (V): 24
- Number of output voltages: 1
- Max output power (W): 480
- Input voltage (V): 90 - 264
- Min. input voltage: 90
- Max. input voltage (V): 264
- Max. output current (A): 20
- Number of output currents: 1
- IP rating: No IP assigned
- LED driver: No
- Dimming technologies: No Dimming
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 19.96
