Mean Well SD-100B-5
Article number:
SD-100B-5
Article GTIN:
4711287465241
Downloads

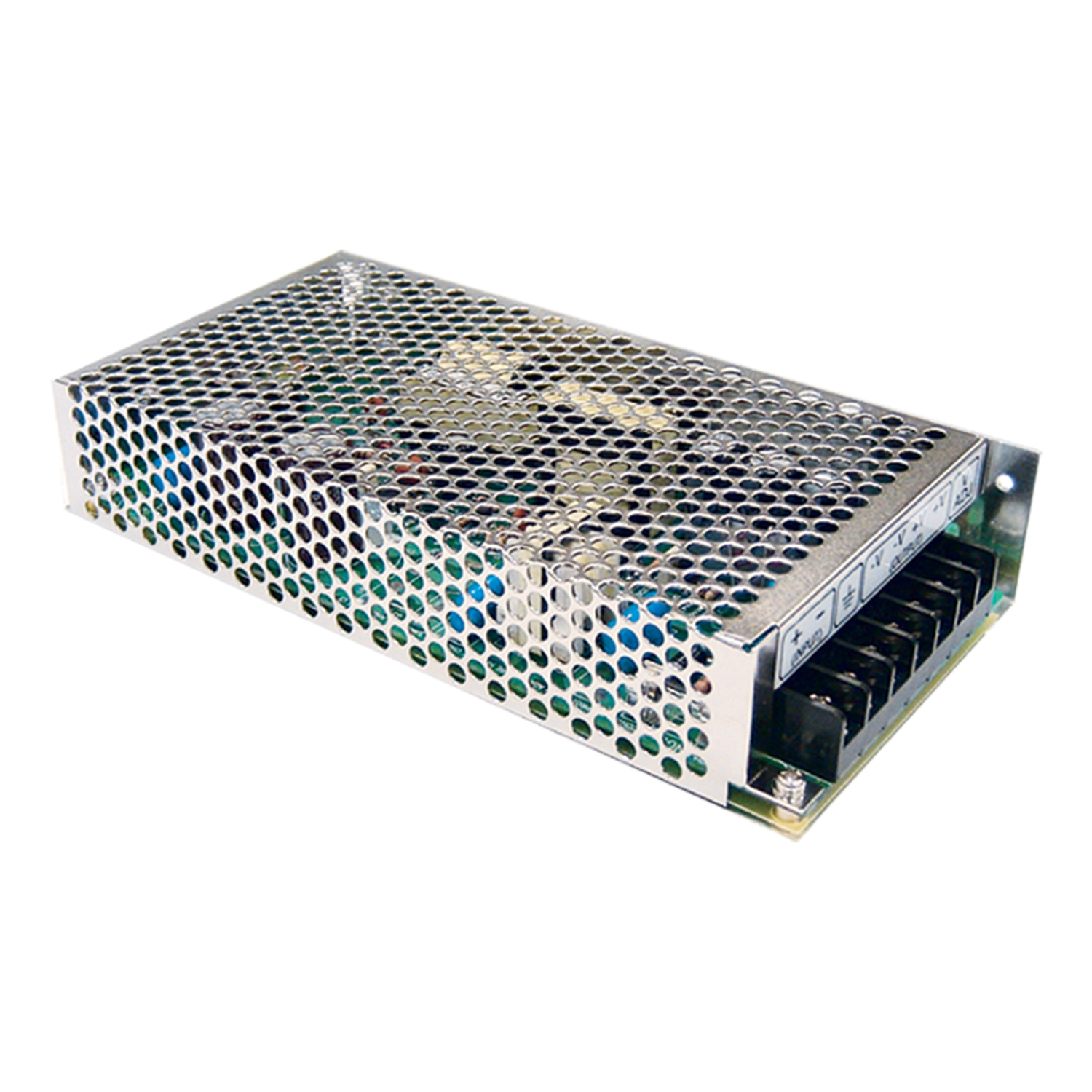

DC-DC Enclosed converter; Input 19-36Vdc; Output +5Vdc at 20A; Free air convection
Properties
- Series: SD-100
- Brand: Mean Well
- Dimensions LxWxH (mm): 199x98x38 mm
- Warranty: 24 Months Bring-In
- Gross weight: 630
- Type: DC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 5
- Max. output voltage (V): 5
- Number of output voltages: 1
- Max output power (W): 100
- Input voltage (V): 19 - 36
- Min. input voltage: 19
- Max. input voltage (V): 36
- Max. output current (A): 20
- Number of output currents: 1
- IP rating: No IP assigned
- LED driver: No
- Dimming technologies: No Dimming
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 6.3
