Mean Well RSP-3000-24
Article number:
RSP-3000-24
Article GTIN:
4711287438078
Downloads

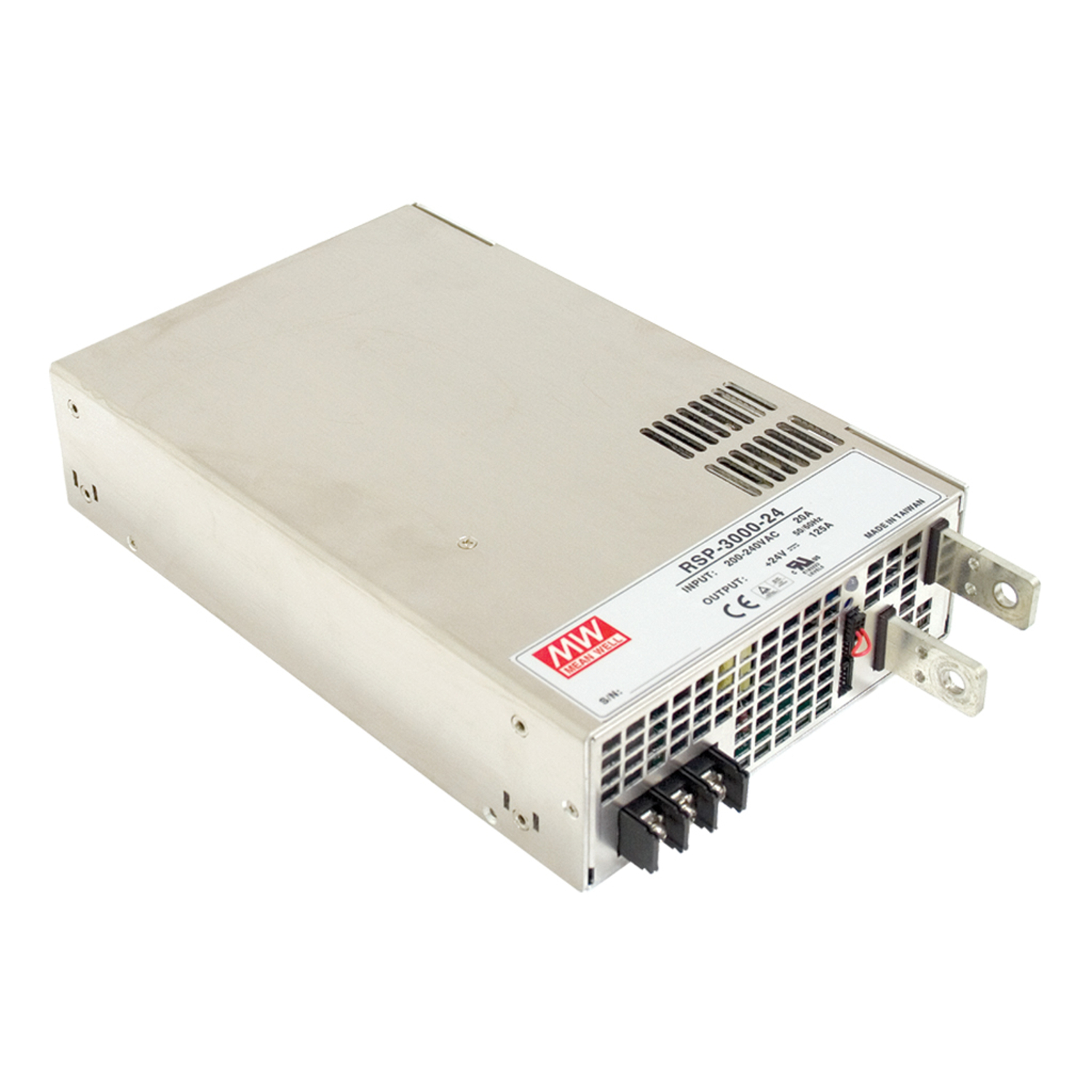

AC-DC Single Output Enclosed power supply; Output 24VDC Single Output at 125A; PFC; forced air cooling
Properties
- Series: RSP-3000
- Brand: Mean Well
- Dimensions LxWxH (mm): 278x177.8x63.5 mm
- Warranty: 60 Months Bring-In
- Gross weight: 3870
- Type: AC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 24
- Max. output voltage (V): 24
- Number of output voltages: 1
- Max output power (W): 3000
- Input voltage (V): 180 - 264
- Min. input voltage: 180
- Max. input voltage (V): 264
- Max. output current (A): 125
- Number of output currents: 1
- IP rating: No IP assigned
- LED driver: No
- Dimming technologies: No Dimming
- Control signals: DC OK, ON/OFF, Remote Sense, Vaux auxilary
- Carbon footprint (kgCO2e/pcs): 44.99
