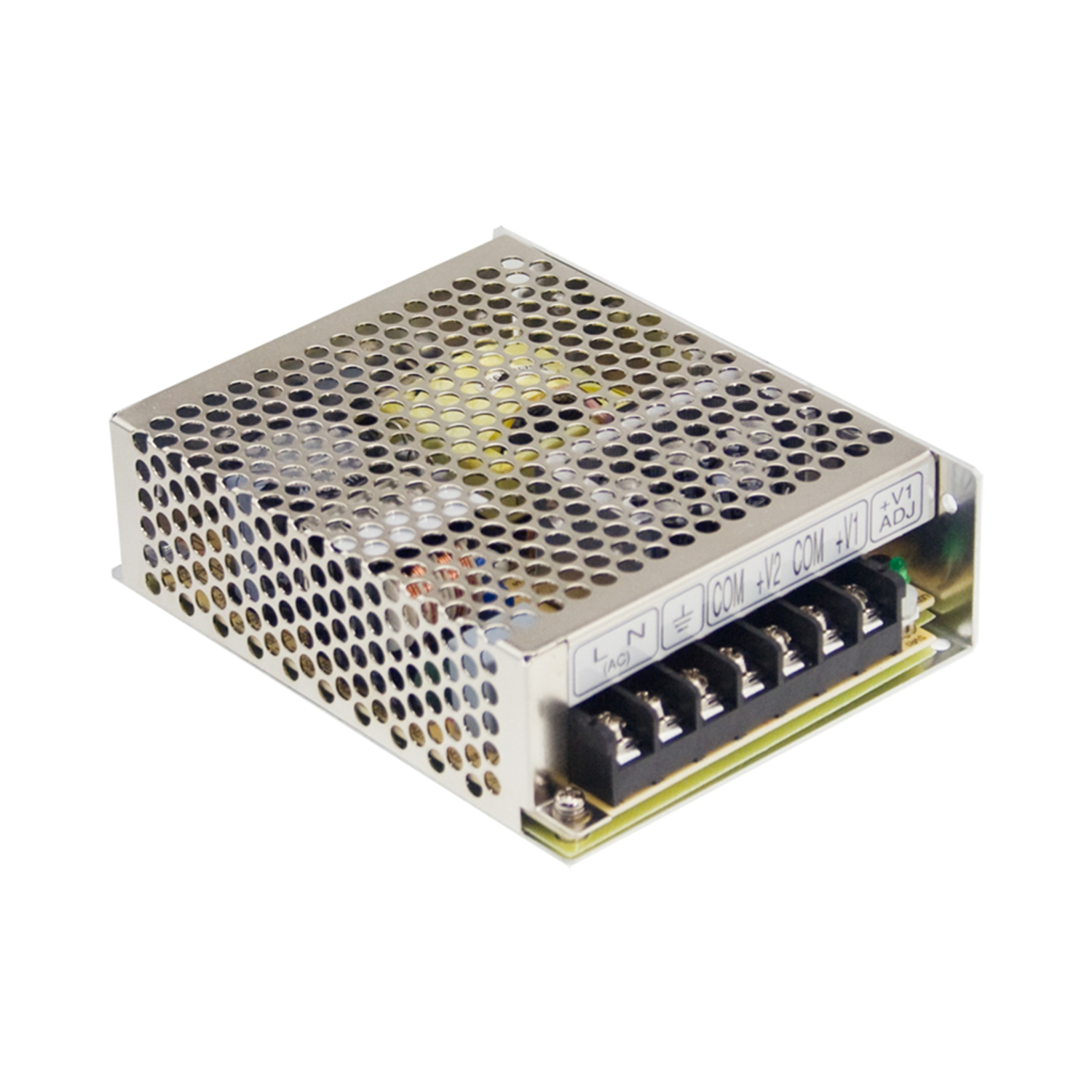

Mean Well RS-75-24
Article number:
RS-75-24
Article GTIN:
4711287433783
Downloads
AC-DC Single Output Enclosed power supply; Output 24VDC Single Output at 3.2A; free air convection
Properties
- Series: RS-75
- Brand: Mean Well
- Dimensions LxWxH (mm): 139x106x44 mm
- Warranty: 12 Months Bring-In
- Gross weight: 420
- Type: AC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 24
- Max. output voltage (V): 24
- Number of output voltages: 1
- Max output power (W): 75
- Input voltage (V): 88 - 264
- Min. input voltage: 88
- Max. input voltage (V): 264
- Max. output current (A): 3.2
- Number of output currents: 1
- IP rating: No IP assigned
- LED driver: No
- Dimming technologies: No Dimming
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 4.07
