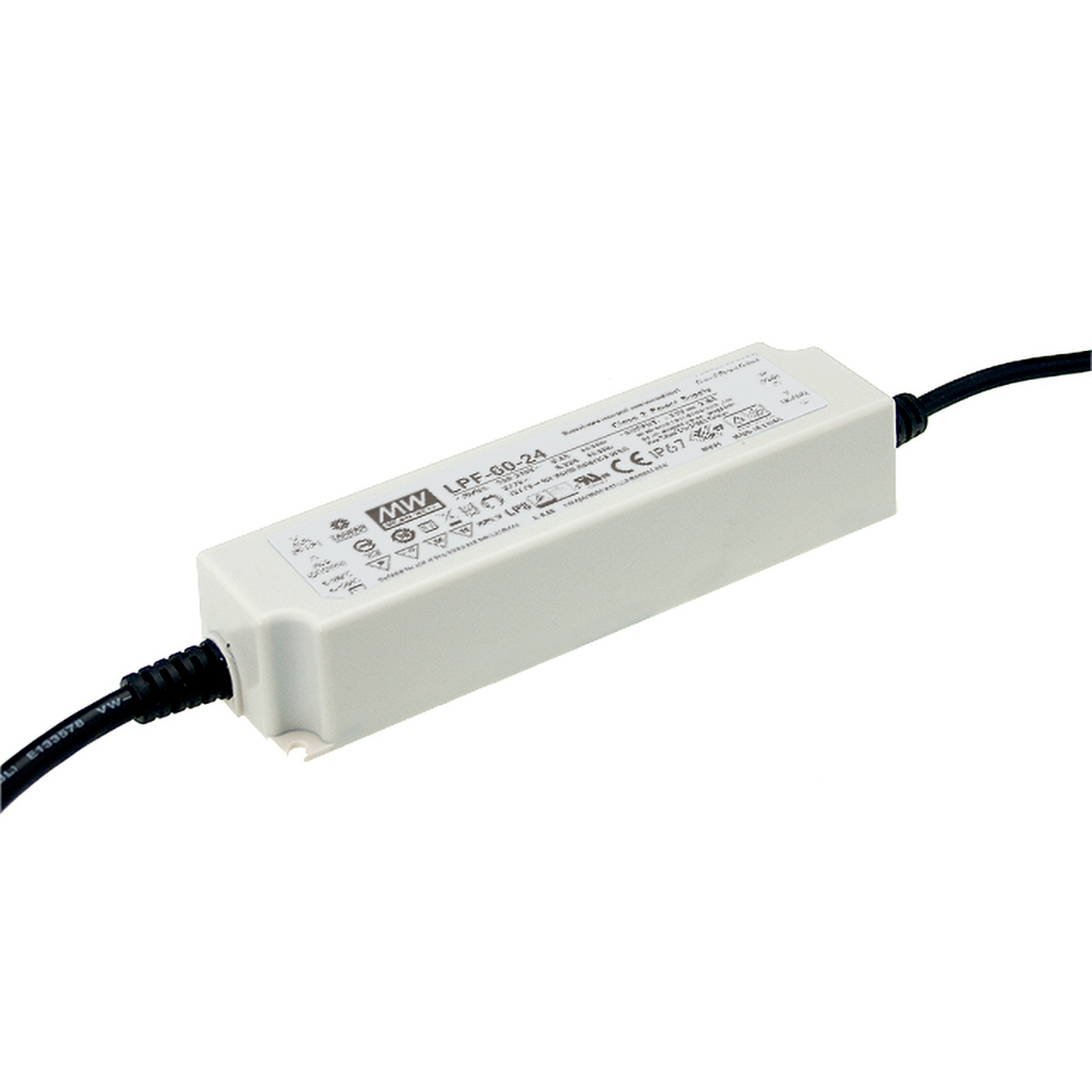

Mean Well LPF-60-24
Article number:
LPF-60-24
Article GTIN:
4711287458564
Downloads
AC-DC Single output LED driver Mix Mode (CV+CC); Output 24Vdc at 2.5A; cable output
Properties
- Series: LPF-60
- Brand: Mean Well
- Dimensions LxWxH (mm): 245x69x44 mm
- Warranty: 60 Months Bring-In
- Gross weight: 440
- Type: AC-DC
- Form factor: Enclosed
- Min. output voltages (V): 24
- Max. output voltage (V): 24
- Number of output voltages: 1
- Max output power (W): 60
- Input voltage (V): 90 - 305
- Min. input voltage: 90
- Max. input voltage (V): 305
- Max. output current (A): 2.5
- Number of output currents: 1
- IP rating: IP67
- LED driver: Yes
- Dimming technologies: No Dimming
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 6.32
