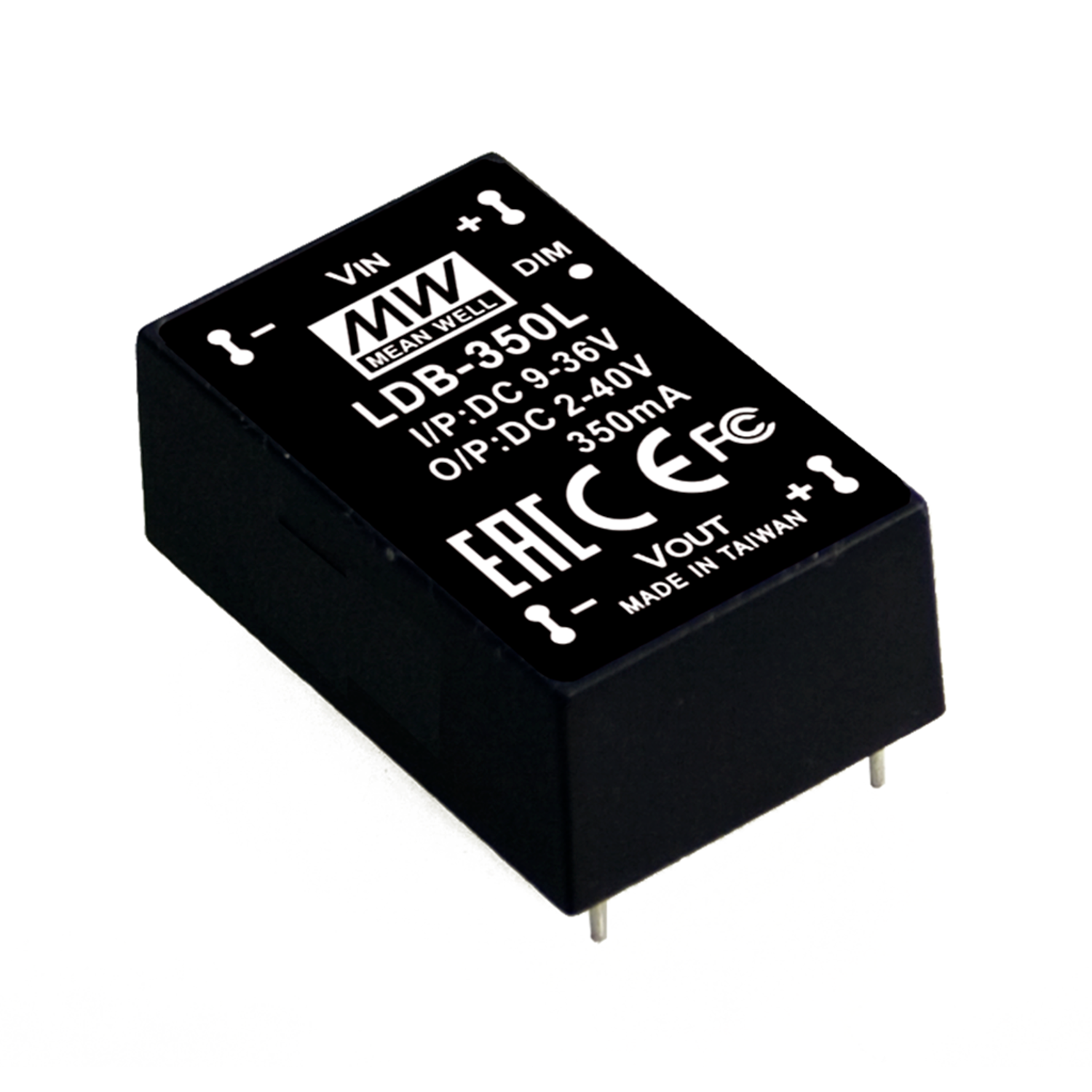

Mean Well LDB-350L
Article number:
LDB-350L
Article GTIN:
4711287479958
Downloads
DC-DC Buck-Boost LED Driver (CC); Input 9-36Vdc; Output 40Vdc at 0.35A; Built-in PWM and Remote ON/O
Properties
- Series: LDB-L
- Brand: Mean Well
- Dimensions LxWxH (mm): 31.8x20.3x12.2 mm
- Warranty: 36 Months Bring-In
- Gross weight: 15.6
- Type: DC-DC
- Form factor: Module
- Mounting method: PCB Mount
- Min. output voltages (V): 2
- Max. output voltage (V): 40
- Number of output voltages: 1
- Input voltage (V): 9 - 36
- Min. input voltage: 9
- Max. input voltage (V): 36
- Max. output current (A): 0.35
- Number of output currents: 1
- IP rating: No IP assigned
- LED driver: Yes
- Dimming technologies: PWM
- Control signals: ON/OFF
