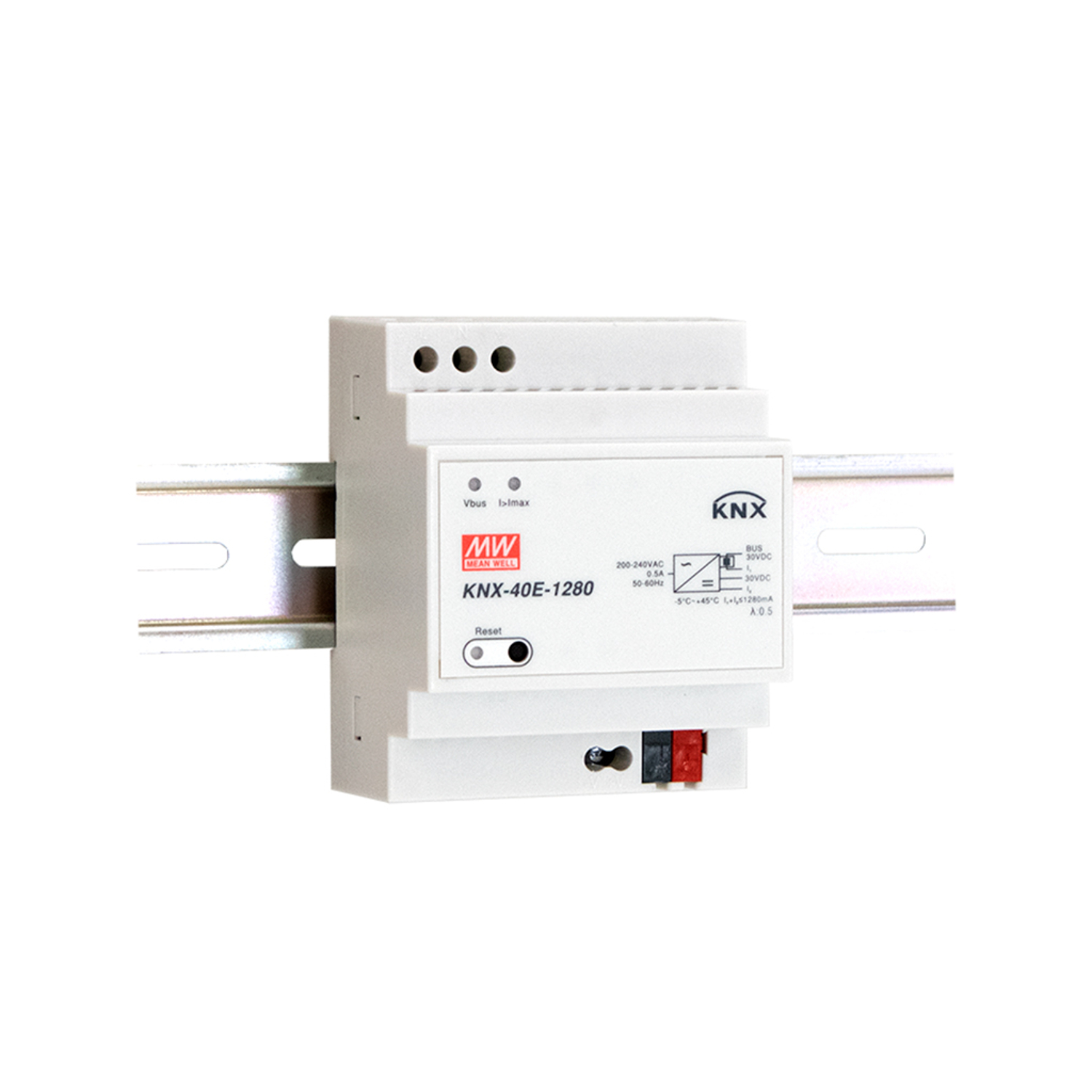

Mean Well KNX-40E-1280
Article number:
KNX-40E-1280
Article GTIN:
4711232760100
Downloads
AC-DC KNX EIB DIN rail power supply with integrated choke; Output 30Vdc at 1.28A; basic function
Properties
- Series: KNX-40E
- Brand: Mean Well
- Dimensions LxWxH (mm): 57x72x90 mm
- Warranty: 12 Months Bring-In
- Gross weight: 328
- Type: AC-DC
- Form factor: DIN rail
- Mounting method: DIN-rail mount
- Min. output voltages (V): 30
- Max. output voltage (V): 30
- Number of output voltages: 1
- Input voltage (V): 180 - 264
- Min. input voltage: 180
- Max. input voltage (V): 264
- Max. output current (A): 1.28
- Number of output currents: 1
- IP rating: IP20
- LED driver: No
- Dimming technologies: KNX
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 5.7
