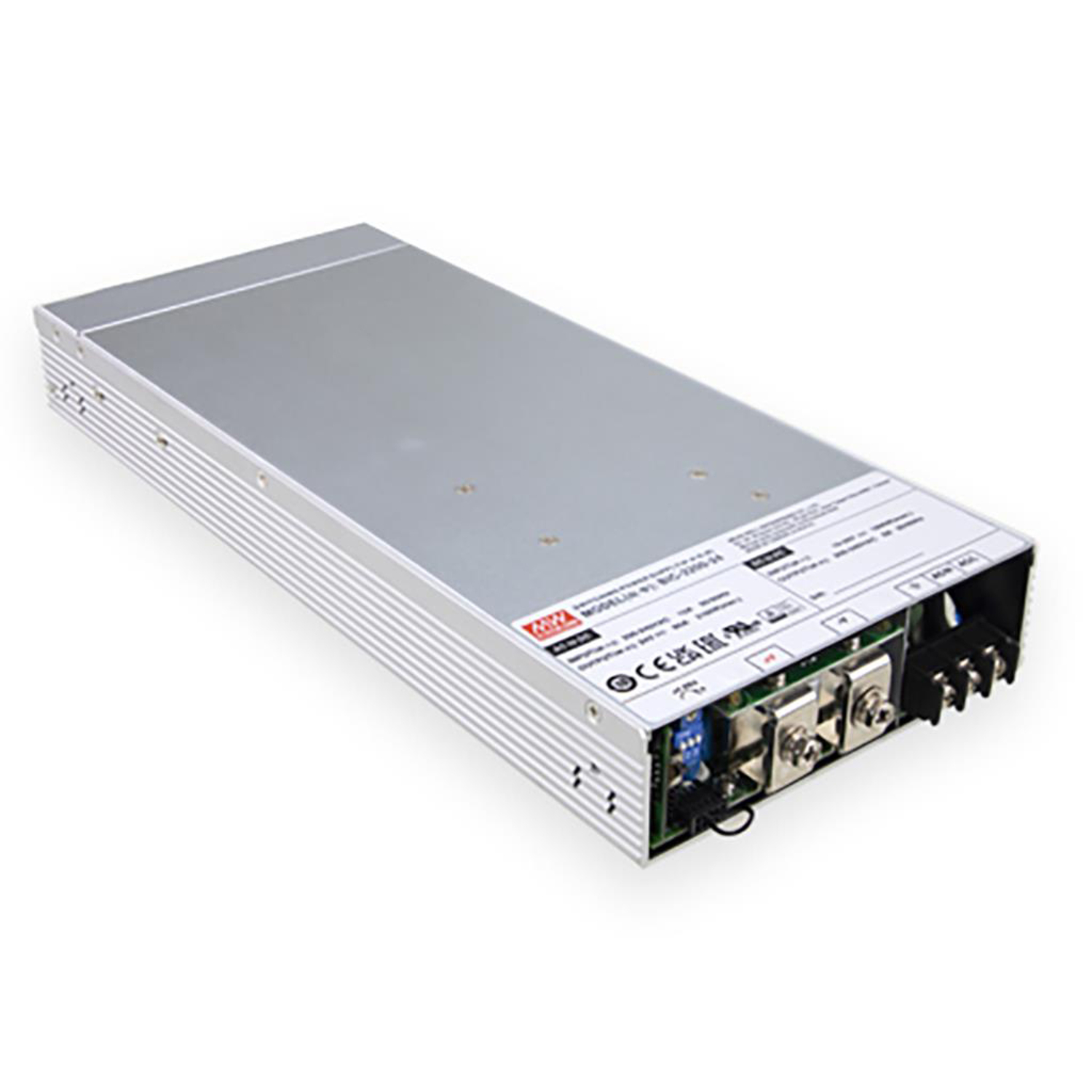

Mean Well BIC-2200-48CAN
Article number:
BIC-2200-48CAN
Article GTIN:
4711287431925
Downloads
AC-DC Single output enclosed bidirectional power supply; Output 48Vdc at 45A; 1U low profile; Cooling by built-in DC fan; remote ON/OFF; protocol CANBus
Properties
- Series: BIC-2200
- Brand: Mean Well
- Dimensions LxWxH (mm): 541x382x182 mm
- Warranty: 60 Months Bring-In
- Gross weight: 2970
- Type: AC-DC
- Form factor: Enclosed
- Mounting method: Chasis mount
- Min. output voltages (V): 48
- Max. output voltage (V): 48
- Number of output voltages: 1
- Max output power (W): 2200
- Input voltage (V): 180 - 264
- Min. input voltage: 180
- Max. input voltage (V): 264
- Max. output current (A): 45
- Number of output currents: 1
- IP rating: No IP assigned
- LED driver: No
- Dimming technologies: No Dimming
- Control signals: No control signals
- Carbon footprint (kgCO2e/pcs): 39.42
